Nashua Rail Bridge

Concrete Arch Bridge over Cedar River
Nashua, Chickasaw County, Iowa

Click the Photo Above to See All Photos of This Bridge!
Name Nashua Rail Bridge
Built By Dubuque & Sioux City Railroad
Contractor Paterson, Collier & Company of Chicago
Currently Owned By Canadian National Railway
Length 410 feet Total, 48 Foot Largest Spans
Width 1 Track
Height Above Ground 12 Feet (Estimated)
Superstructure Type Concrete Arch
Substructure Type Concrete
Date Built 1902
Traffic Count 2 Trains/Day (Estimated)
Current Status In Use
Significance Moderate Significance
Documentation Date March 2015
In 1858, the Cedar Falls & Minnesota Railroad constructed a line from Cedar Falls, Iowa to Lyle, Minnesota. The 77 mile line closely paralleled the Cedar River.

In 1896, the railroad became incorperated into the Dubuque & Sioux City Railroad. This railroad was a fully owned and operated subdivision of the Illinois Central Railroad.

In 1900, the Albert Lea and Southern Railroad extended the line to Glenville, Minnesota. This location was on the Burlington, Cedar Rapids & Northern (Rock Island) just south of Albert Lea.

The line immediately became part of the Dubuque & Sioux City Railroad.
The Dubuque & Sioux City ceased to exist, and became a full part of the Illinois Central in 1947.

The Illinois Central spun the line off to the Chicago Central Railway, a short line in 1985. The CC came back into Illinois Central in 1996.

In 1998, the Canadian National Railway gained control of the Illinois Central. Today, this line continues to be operated as the Osage Subdivision, with the portion south of Lyle, Minnesota (on the IA/MN Border) seeing steady traffic.
10/25/22


Located in the town of Nashua, this large concrete arch bridge crosses the Cedar River near Greenwood Avenue,
Built in 1902, this structure features six large concrete arches, set onto concrete substructures. When built, this structure was very decorative, unusual for a functional railroad bridge.
In the record flooding of 2008, this bridge almost was removed to prevent a pooling of water upstream from it. However, it was later decided to leave the bridge intact.
After the flood, some work was done on the bridge to restore it and prevent further damage. Unfortunately, between 2008 and many other large floods, the decorative features have somewhat been destroyed.
Currently, the bridge is operated by Canadian National. No long term plans have been presented for the bridge, so it is assumed to be safe.
Overall, the bridge appears to be in good condition, a surprising shift from the damage seen by other bridges across the Cedar River.

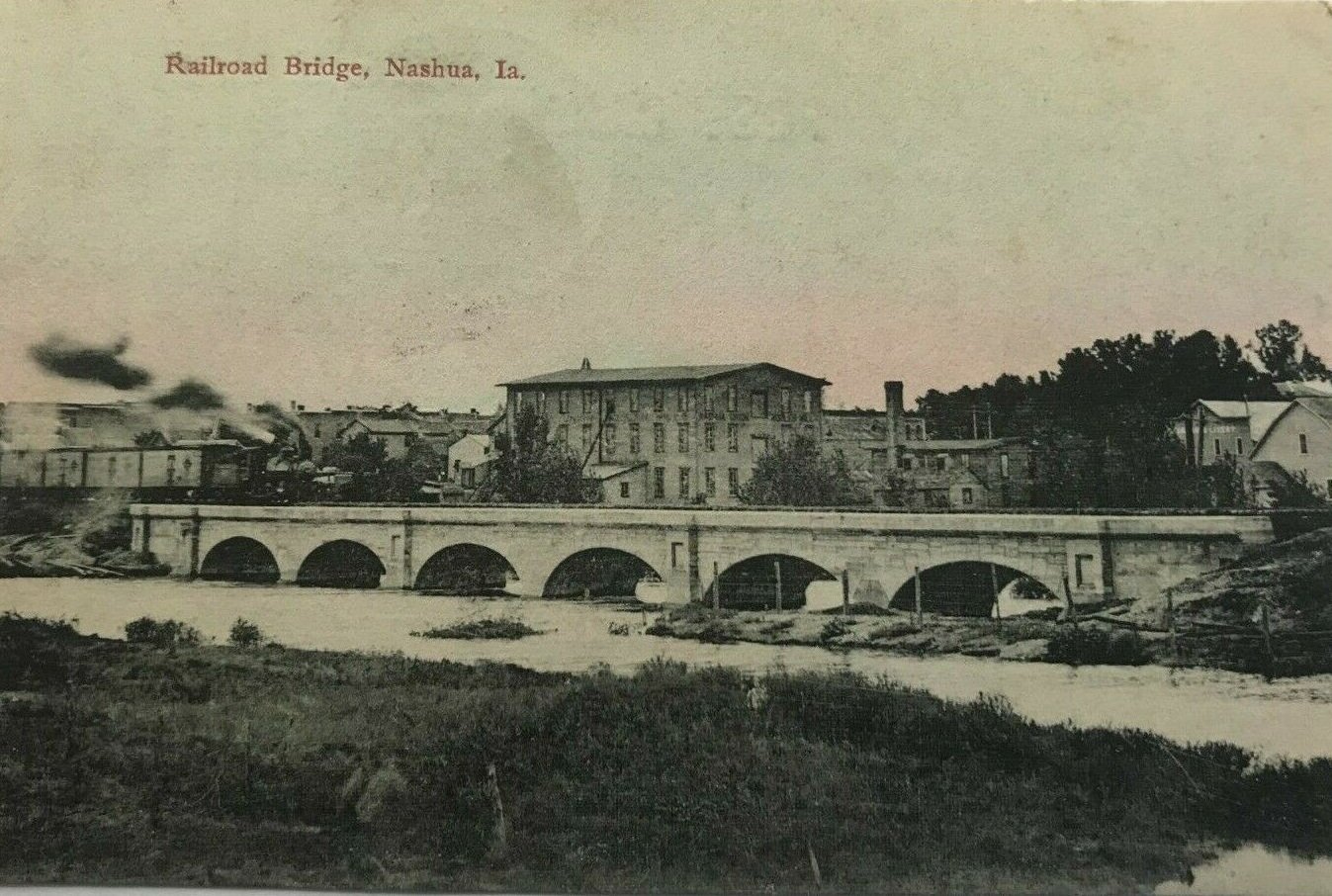

Historic Photo
Historic photo of the bridge

The author has ranked this bridge as being moderately significant, due to the unusual features and large scale design of this bridge.
The photo below is an overview.

Cedar River Railroad Bridges
Upstream Charley Western Trail Bridge
Downstream Waverly Trail Bridge

Citations

Source Type

Source

Build Date Illinois Central 1973 track profile
Builder Illinois Central Bridge Notes at the National Archives; College Park, Maryland
Railroad Line History Source ICC Valuation Information, Compiled by Richard S. Steele
